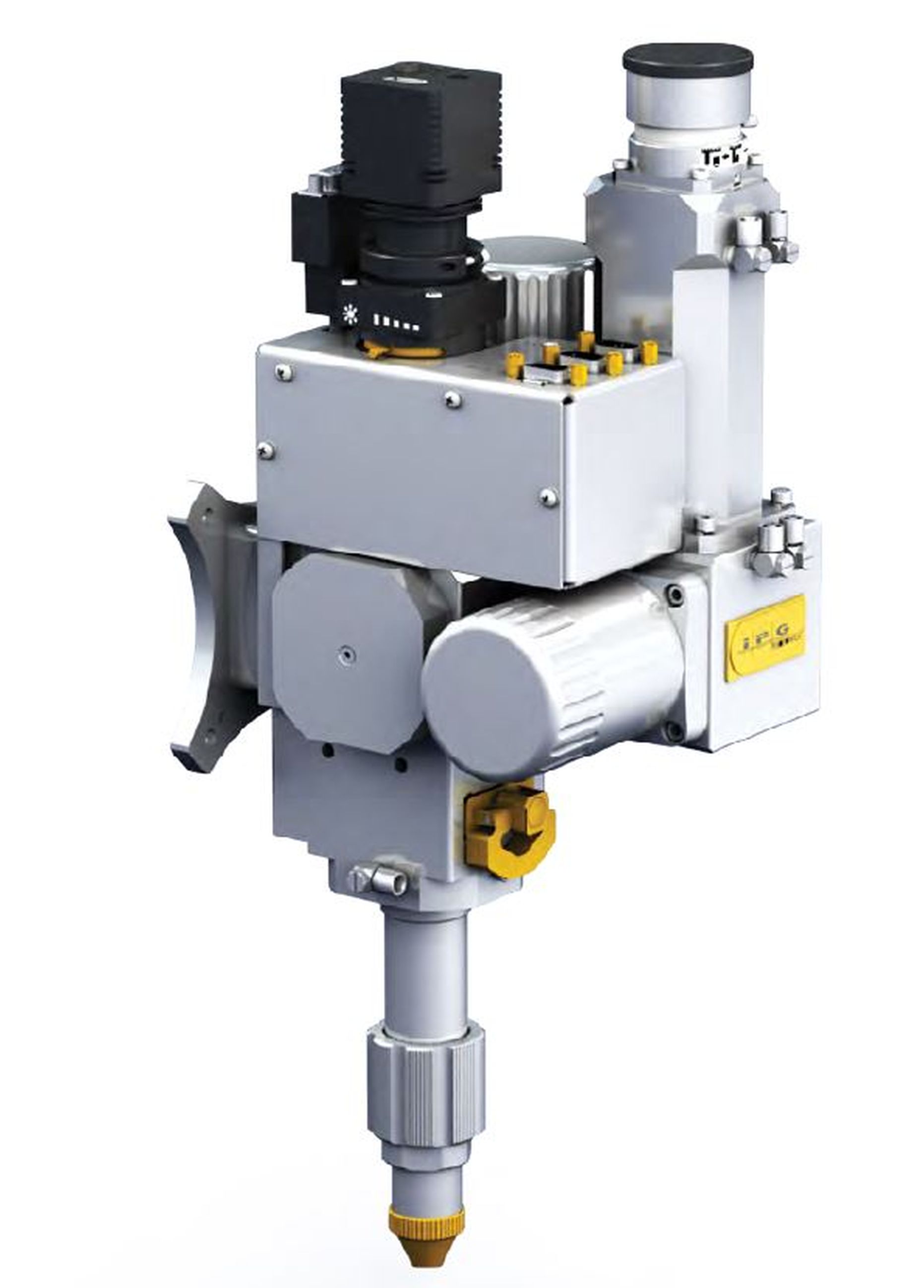

D30 Wobble Head

Production information

  • Description
  • Features
  • Specification
  • Video

The Wobbler improves welding process stability, repeatability and the weld seam aesthetics.Thanks to its flexibility, laser wobbling makes it easier to optimize welding parameters with different materials and welded part shapes.

  • Unmatched laser power handling
  • Fully integrated seam tracking
  • Programmable scanning parameters
  • Sealed for long term stability
  • Variable wobbling radius and frequency
  • Plug-and-play architecture for all IPG lasers



  • Wobble Frequency:1 kHz
  • Laser Power:6 kW
  • Focal Length:500mm
  • Wobble Diameter:5mm
  • Seam Tracking Range with Wobble (Single Axis):±5mm
  • Full Scanning Range (Single Axis):±7.5mm




Wobble Process Heads Brochure 2018


Description

The Wobbler improves welding process stability, repeatability and the weld seam aesthetics.Thanks to its flexibility, laser wobbling makes it easier to optimize welding parameters with different materials and welded part shapes.

Features
  • Unmatched laser power handling
  • Fully integrated seam tracking
  • Programmable scanning parameters
  • Sealed for long term stability
  • Variable wobbling radius and frequency
  • Plug-and-play architecture for all IPG lasers
Specification



  • Wobble Frequency:1 kHz
  • Laser Power:6 kW
  • Focal Length:500mm
  • Wobble Diameter:5mm
  • Seam Tracking Range with Wobble (Single Axis):±5mm
  • Full Scanning Range (Single Axis):±7.5mm



Video

Wobble Process Heads Brochure 2018
