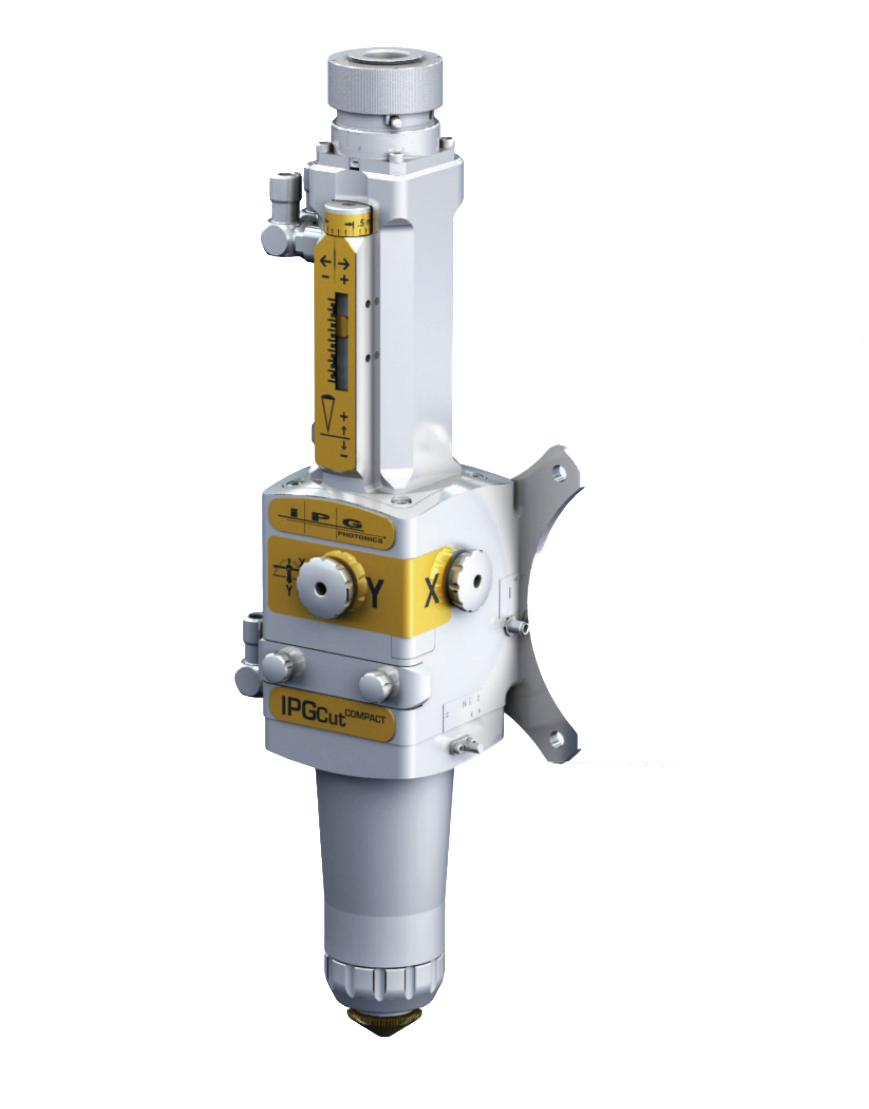

Compact Cutting Head

Production information


  • Able to Cut Steel, Copper, Aluminum and Brass
  • Low Weigh
  • 4 kW CW Laser Power Handling
  • Adjustable Focus Indicator Air-cooled up to 1 kW
  • Capacitive Height Sensor
  • Completely Sealed Design
  • Ultra-stable Capacitive Height Sensing Broad Range of Focusing Lens and Collimators
Laser Power up to 4 kW
Collimating Lens, mm 85, 100
Focusing Lens, mm 125, 150, 200
Fiber Receiver HLC8 and LCA
Weight (V), kg   < 2.5
Cutting Head Brochure 2018
